Collar Ties In Attic / Rafter and collar tie tension equation.. For example, very long rafters in a relatively steeply pitched roof (slopes above 6/12, for instance) may benefit from a stabilizing effect if adequately connected collar ties are installed on every rafter. Rafter ties are in the bottom third of the attic space, collar. Collar tie is a grappling clinch hold that is used to control the opponent. Collar ties or ridge straps to resist wind uplift shall be connected in the upper third of the attic space in accordance with table r602.3(1). The collars that are there are twisted, dry, and the nails are coming out.

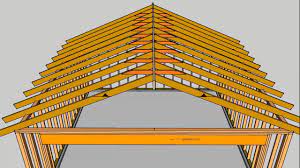

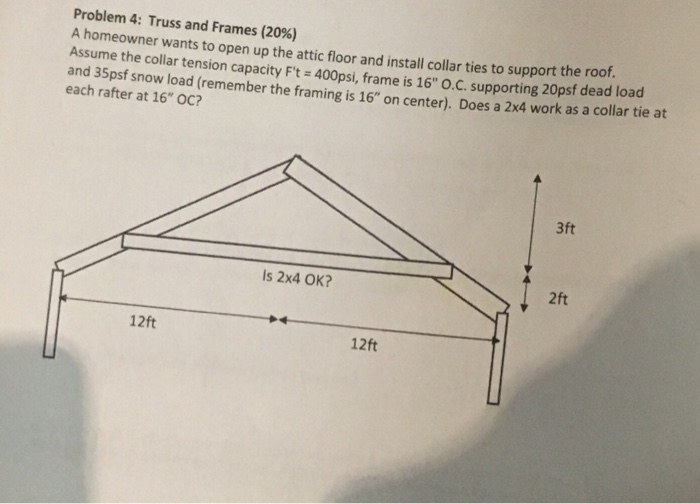

I temporarily attached a couple of 2x4s to the rafters and made sure they were level to each other and. In this how it works article, managing editor debra judge silber. Supporting 20psf dead load and 35psf snow load (remember the framing is 16 on center). The 2015 international residential code does not require collar. Magical, meaningful items you can't find anywhere else.
What Is A Collar Tie from www.howtolookatahouse.com Inevitably, the space is full of collar ties. The ties allow for a drywall ceiling and add strength to the roof structure. Adding collar ties and intermediate supports can add considerable strength to a roof system. It is performed from the front of the opponent by grabbing the opponent by the collar, behind the neck, or behind the trapezius muscle. Rafter and collar tie tension equation. Collar tie is a grappling clinch hold that is used to control the opponent. Assume the collar tension capacity f't = 400psi, frame is 16 o.c. I went into the attic, to find minimal collar ties.
Most installers put collar ties so high and close to the ridge that they serve no real function.
The ties allow for a drywall ceiling and add strength to the roof structure. A collar tie using one hand is called a single collar tie. I installed some collar ties so i could insulate the ceiling while leaving an air space at the top of the attic for ventilation. Collar ties are usually placed in the attic area of homes. It is performed from the front of the opponent by grabbing the opponent by the collar as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic. The collars that are there are twisted, dry, and the nails are coming out. Men's dress shirt collars and ties are the lingua franca of the modern world. Collar ties or ridge straps to resist wind uplift shall be connected in the upper third of the attic space in accordance with table r602.3(1). If you look in your attic you may notice a series of horizontal structural members tying opposite roof rafters together. Collection by amy tiernan • last updated 2 weeks ago. However, if collar ties are placed in the upper 1/3 and used in conjunction with ceiling joists fastened at the top wall plates, and the ceiling joists are at minimun 4 ft on ctr, the collar ties will help decrease rafter span / sag. To establish the relationship discussed in the article, we need to. See more ideas about home, house design, house interior.
Collar ties are usually placed in the attic area of homes. Inevitably, the space is full of collar ties. Where collar ties are used to connect opposing rafters, they shall be located in the upper third of the attic space and fastened in accordance. Looking to the front of the house, i have added a 2 x 6 box directly beneath the flat roof box, and collar ties have been cut and installed between opposing rafters, glued and nailed in place, and bracketed underneath the new 2 x 6 box. The rafter ties were clearly pulling away from their rafters because of the tension forces they were as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic.
Collar Tie S Demolition Renovation Engineering Eng Tips from res.cloudinary.com However, if collar ties are placed in the upper 1/3 and used in conjunction with ceiling joists fastened at the top wall plates, and the ceiling joists are at minimun 4 ft on ctr, the collar ties will help decrease rafter span / sag. Cut a strip of plywood 24 inches wide and 96 inches long using a circular saw. A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow. I noticed that the rafter ties had pulled away from the. It is performed from the front of the opponent by grabbing the opponent by the collar as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic. There are some exceptions, however, when collar ties might be useful even in a conventional attic roof. Collar ties or ridge straps to resist wind. To establish the relationship discussed in the article, we need to.
I temporarily attached a couple of 2x4s to the rafters and made sure they were level to each other and.
Looking to the front of the house, i have added a 2 x 6 box directly beneath the flat roof box, and collar ties have been cut and installed between opposing rafters, glued and nailed in place, and bracketed underneath the new 2 x 6 box. It is performed from the front of the opponent by grabbing the opponent by the collar as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic. A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow. The rafter ties were clearly pulling away from their rafters because of the tension forces they were as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic. For the collar tie i am designing for a 2.2 k load (output from risa, asd forces) the nds doesn't have a table for double shear connection for nails, would i they are both just horizontal members that tie rafters on either side of the ridge together. Proper collar ties would be installed in the upper 1/3 of the attic space in order to prevent the tops of the rafters from separating at the ridge. Magical, meaningful items you can't find anywhere else. Measure the distance between adjacent roof rafters so that you will know. However, if collar ties are placed in the upper 1/3 and used in conjunction with ceiling joists fastened at the top wall plates, and the ceiling joists are at minimun 4 ft on ctr, the collar ties will help decrease rafter span / sag. By these rafters shall be supported by a wall or girder designed in accordance with accepted engineering practice. It is performed from the front of the opponent by grabbing the opponent by the collar, behind the neck, or behind the trapezius muscle. Check out our collar ties selection for the very best in unique or custom, handmade pieces from our shops. A collar tie using one hand is called a single collar tie.
Find ideas and inspiration for exposed collar ties to add to your own home. Looking to the front of the house, i have added a 2 x 6 box directly beneath the flat roof box, and collar ties have been cut and installed between opposing rafters, glued and nailed in place, and bracketed underneath the new 2 x 6 box. Men's dress shirt collars and ties are the lingua franca of the modern world. Hello, i am going to finish my attic space and am very interested at raising the collar ties. To establish the relationship discussed in the article, we need to.
Collar Tied Roof Fail Structural Engineering General Discussion Eng Tips from res.cloudinary.com Find ideas and inspiration for exposed collar ties to add to your own home. Cut a strip of plywood 24 inches wide and 96 inches long using a circular saw. In this case every fourth rafter was a fir two by six which had. To establish the relationship discussed in the article, we need to. Rafter and collar tie tension equation. My roof is a double gable or intersecting gable. I noticed that the rafter ties had pulled away from the. Check the attic so that you can get a better look at where the roof.

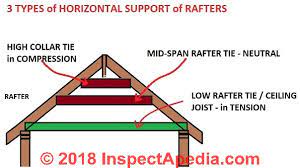

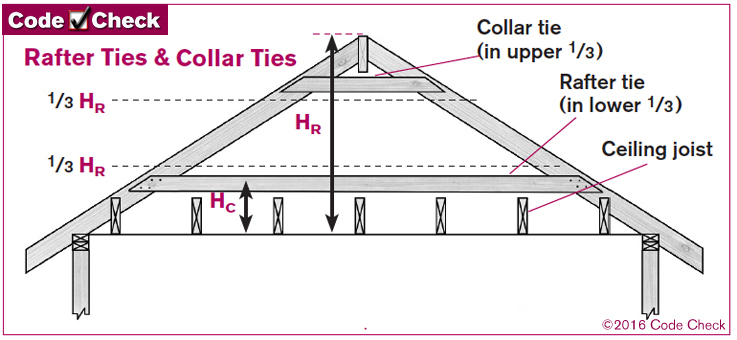

Rafter ties are in the bottom third of the attic space, collar.

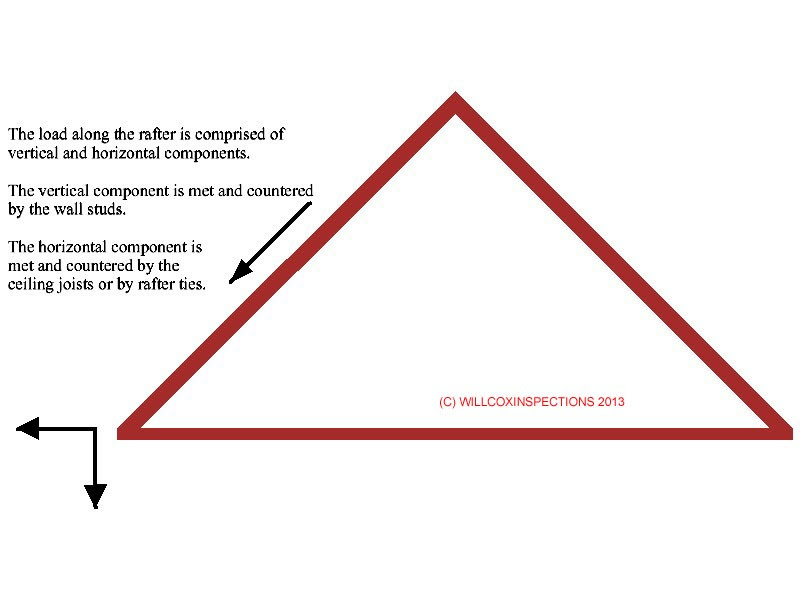

A collar tie is a tension tie in the upper third of opposing gable rafters that is intended to resist rafter separation from the ridge beam during periods of unbalanced loads, such as that caused by wind uplift, or unbalanced roof loads from snow. A collar tie using one hand is called a single collar tie. It is performed from the front of the opponent by grabbing the opponent by the collar as a boy, i remember seeing a dilapidated farm building that had a set of rafter ties in its attic. Measure the distance between adjacent roof rafters so that you will know. In this case every fourth rafter was a fir two by six which had. For the collar tie i am designing for a 2.2 k load (output from risa, asd forces) the nds doesn't have a table for double shear connection for nails, would i they are both just horizontal members that tie rafters on either side of the ridge together. These horizontal structural members are known as collar ties. In this how it works article, managing editor debra judge silber. Magical, meaningful items you can't find anywhere else. Rafter ties are in the bottom third of the attic space, collar. I installed some collar ties so i could insulate the ceiling while leaving an air space at the top of the attic for ventilation. Does a 2 times 4 work as a collar tie at each rafter at 16 oc? Assume the collar tension capacity f't = 400psi, frame is 16 o.c.
